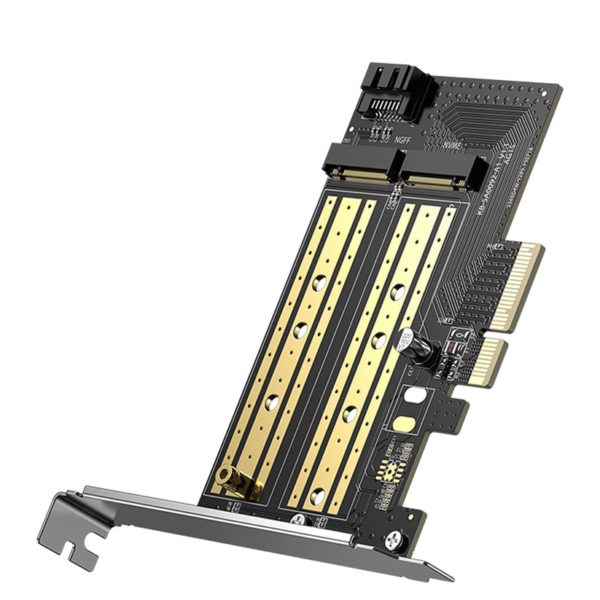

UGREEN M.2 NVMe + M.2 SATA to PCI-E 3.0 X 4 – PCI express card

Ugreen 70504 supports two M2 converter card slots. Two slots can be used at the same time.

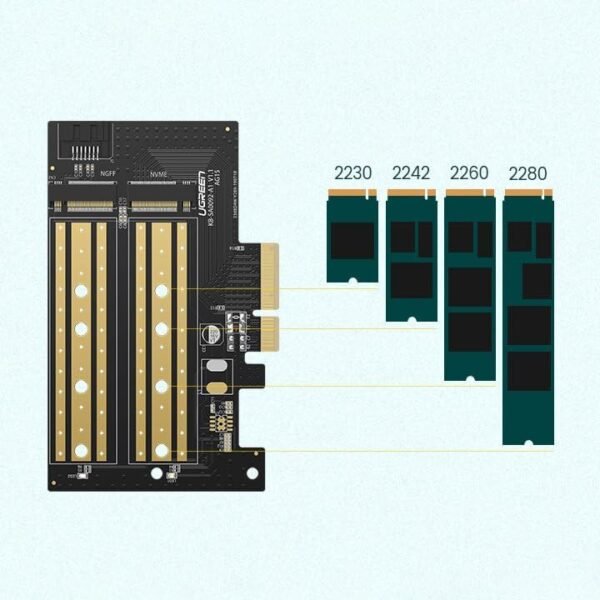

Can support M2 SSD size: 2230 2242 2260 2280 22110.

The maximum speed of M.2 NGFF SSD for SATA III is 6Gb/s – which is SATA III transport protocol. This is compatible with key B – key B + M.

The maximum speed of M.2 NVMe SSD for PCIe is 32Gbps – which is NVMe PCIe 3.0 X4 transfer protocol. Only M Key is supported.

It can be used in PCIE X4 – X8 – X16 slots on computer motherboards.
